James Mimlitz ‘Slim’, SCADAmetrics
Spirax/Sarco (Blytheville, NC) is known as a leader in ultrasonic flow measurement technology.

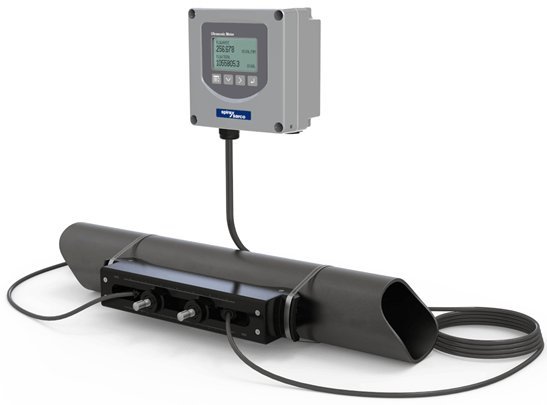

The UTM20 (pictured below) is Spirax/Sarco’s mains-powered flow measurement system that is deployed in closed-pipe water and wastewater applications. It features ultrasonic sensing capability that can be used to calculate rate-of-flow (example: GPM), plus an accumulator functionality that can be used to calculate volumetric totalization (example: Gallons).
(This article also applies to the Dynasonics TFX-5000 ultrasonic flow meter.)
Major Advantages of Clamp-On Ultrasonic Flow Measurement Technology
- No need to cut pipe to install the flow meter.
- No need to shut down the process flow to install the flow meter
- Installation size and complexity does not increase with pipe diameter size, providing especially economical equipment and installation labor savings for larger diameter pipes.
- No moving or protruding parts inside the pipe — thereby lending itself to wastewater and other applications where the water includes solid content.
The UTM20 features traditional 4-20 milliamp and pulse SCADA signals, as well as fieldbus protocols. SCADAmetrics is pleased to announce that today’s firmware release for the Model MBE Modbus Encodalizer™ now adds Sensus and Neptune encoder protocols to this important flow meter, so that it may now be easily integrated into today’s modern AMI/AMR systems!

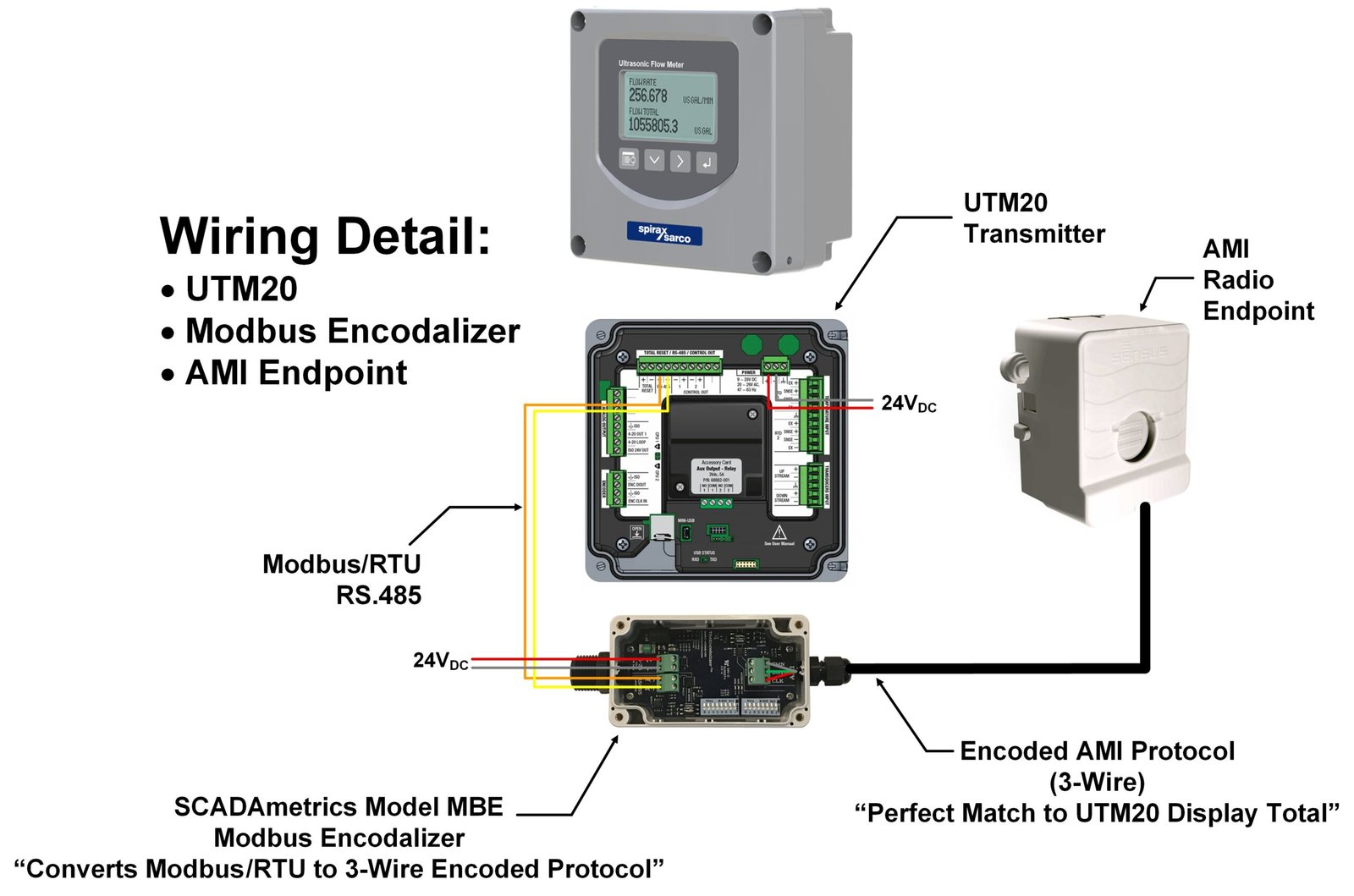

The following wiring diagram illustrates a typical application of the UTM20/Encodalizer Pair into a potable water distribution or wastewater system — where both AMI and SCADA signaling made are possible:
Connection of the Encodalizer to the UTM20 could not be easier: Two (2) wires interconnect the instruments: Modbus+(B) and Modbus–(A). Configuration of the Encodalizer is also straightforward, requiring setup via 16 integral DIP switches from a lookup table.
The UTM20 factory default Modbus communication settings should not be modified.
UTM20 / AMI – Basic Wiring
Documentation
Would you like to download a PDF copy of our UTM20 / Encodalizer Application Note? — Click Here
Want to Learn More?…
Are you interested in learning more about how SCADAmetrics flow instrumentation, when paired with the Spirex/Sarco UTM20 flow meter, can provide concurrent AMI and SCADA signaling options? Give us a call!… We’ll be glad to discuss the details!
