SCADAMETRICS

Products

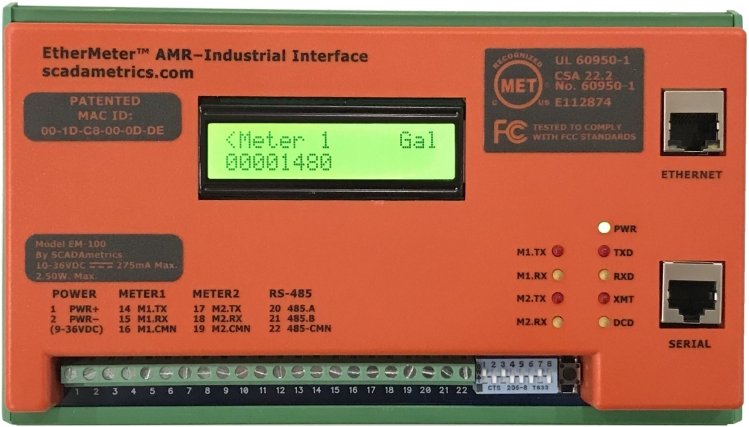

EtherMeter®
Flow Meter Gateway For SCADA, Telemetry, & Building Automation Systems.
Model EM-100

Datasheet
New!: Pre-Start CheckList - Please Review!
Click Here to Visit the EtherMeter Documentation Center

Compatible Meters: Encoder-Based Meters From Sensus, Neptune, Master Meter, Metron-Farnier, Mueller/Hersey, Honeywell/Elster/ABB/Kent, Badger, RG3, Kamstrup, Zenner, Siemens, and many others.  Most Pulse-Based Meters (Mechanical Contact, Solid-State Contact, and Open-Collector Contact).

For a detailed, up-to-date list of compatible meters,
see the Meter Compatibility Matrix.

Automation Protocols: MODBUS/RTU, MODBUS/ASCII,
MODBUS/TCP, MODBUS/UDP, MODBUS/RTU-OVER-UDP (optional-call),
EtherNet/IP, DF1-RadioModem, DF1-FullDuplex,
Iridium Satellite (optional-call),
RAW-ASCII (optional-call), ADAM-4000 (optional-call).

Ultra-Wide Power Supply Voltage Range: 10-36VDC.
Safety Certifications: UL 60950-1 (USA, Mexico), CSA C22.2 No. 60950-1 (Canada).
2 Year Warranty. Patented.

Quantity=1
Price: $888.00


TheMeterDisplay™
Model TMD
Datasheet
Click Here to Visit TheMeterDisplay Documentation Center
Full-featured, yet economical, remote wall display for encoder-type water meters. Features include a large backlit LCD display, a pass-through port for an AMI/AMR endpoint, and a user-replaceable battery.

For a detailed, up-to-date list of compatible meters,
see the Meter Compatibility Matrix.

Housed Within a NEMA-4X Outdoor/Indoor Enclosure with Flange Wall Mounts.
Compatible with All Modern Makes/Models Encoder-Type Water Meters.
2 Year Warranty. Patented.
Quantity=1
Price: $250.00

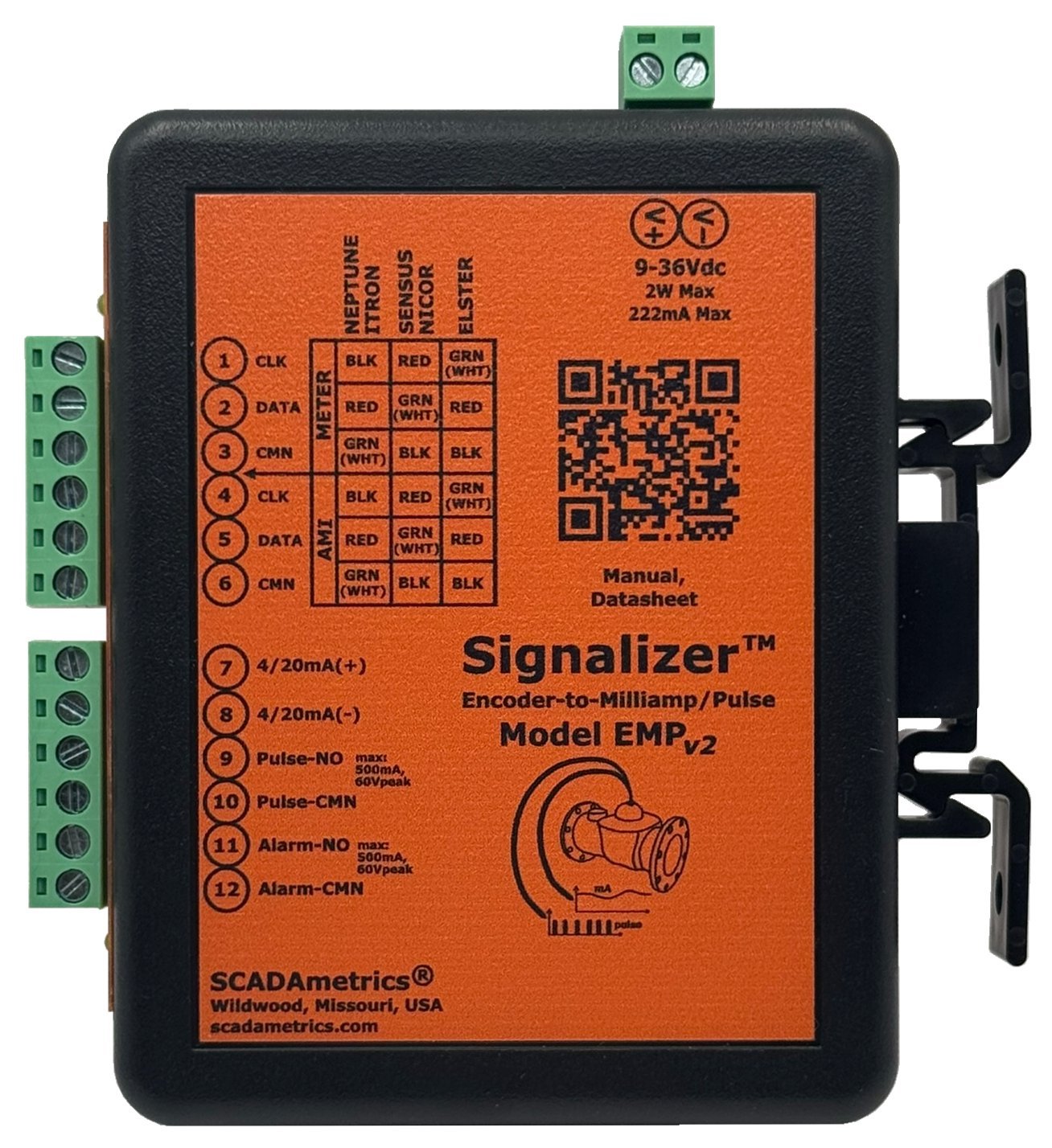

TheSignalizer™
Model EMP
Datasheet
New!: Pre-Start CheckList - Please Review!
Datasheet, Neptune-Centric
Datasheet, Master Meter-Centric
Datasheet, Metron-Farnier-Centric
Datasheet, Sensus-Centric
Datasheet, evoQ4-Centric
NEMA-6P/IP-68 Option Datasheet
Click Here to Visit the Signalizer Documentation Center
Versatile & economical telemetry signal generator for encoder-type water meters. Features include a 4-20mA flow signal output, a pulse totalizer signal output, an alarm signal output, and a pass-through port for an AMI/AMR endpoint.
Housed within an industrial DIN-rail-mountable case.
Compatible with All Modern Makes/Models Encoder-Type Water Meters.
For optimal 4-20mA signal fidelity, a 8,9-digit high-resolution encoder register is recommended.

For a detailed, up-to-date list of compatible meters,
see the Meter Compatibility Matrix.

2 Year Warranty. Patented.
Quantity=1
Price: $646.00




Universal Duplexer for AMI Systems (Wall-Mount)
Model UDA
Datasheet
Click Here to Visit the Universal Duplexer Documentation Center
Used for Connecting Two AMI Endpoints in Parallel to a Single Meter.
Housed Within a NEMA-4X Enclosure with Flange Wall Mounts.
Compatible with All Encoder-Meter Makes and Models.
Patented.
2 Year Warranty.
Quantity=1
Price: $482.00




Analog Pulse Kit
Model APK
Datasheet
Datasheet, Master Meter Octave-Centric
NEMA-6P/IP-68 Option Datasheet
Click Here to Visit the Analog Pulse Kit Documentation Center
Versatile & economical telemetry signal generator for pulse-output-type (dry contact) flow meters. Features include a 4-20mA flow signal output, a pulse totalizer signal output, and a flow switch output.
Housed within an industrial DIN-rail-mountable case.
Compatible with Most Pulse-Type Flow Meters.
For optimal 4-20mA signal fidelity, a high-speed pulse (>1 Hz) input signal is recommended.

2 Year Warranty.
Quantity=1
Price: $646.00




Analog Pulse Kit + Plus
Model APK.PLUS
Datasheet
Datasheet, Master Meter Octave-Centric
Click Here to Visit the Analog Pulse Kit Plus Documentation Center
Versatile & economical telemetry signal generator for pulse-output-type (dry contact) flow meters. Features include a 4-20mA flow signal output, a pulse totalizer signal output, and a flow switch output PLUS a Visual Totalizer & Flow Rate Display.
Housed within an industrial NEMA-4X wall-mountable enclosure. Compatible with Most Pulse-Type Flow Meters. 24Vdc Power Adapter Included.
For optimal 4-20mA signal fidelity, a high-speed pulse (>1 Hz) input signal is recommended.

2 Year Warranty.
Quantity=1
Price: $908.00




AMI Duplexer for SCADA Systems (Din Rail Mount)
Model SDA
Datasheet
Click Here to Visit the AMI Duplexer Documentation Center
Used for connecting an EtherMeter and an AMI System in parallel to a single meter,or for connecting two EtherMeters in parallel to a single meter.
Mounts on 35mm Din-Rail.
Compatible with All Encoder-Meter Makes and Models.
(Replaces Part No. RRF-D "Radio-Read Filter, Din Rail Mount")
2 Year Warranty.
Quantity=1
Price: $282.00




AMI Duplexer for SCADA Systems (Wall-Mount)
Model SDAW
Datasheet
Click Here to Visit the AMI Duplexer Documentation Center
Used for connecting two EtherMeters in parallel to a single meter, or for connecting an EtherMeter and a third-party endpoint to a single water meter.
Contained Within A NEMA-4X Enclosure With Flange Wall Mounts.
Compatible with All Encoder-Meter Makes and Models.
(Previously Named: Part No. RRFW "Radio-Read Filter, Wall-Mount")
2 Year Warranty.
Quantity=1
Price: $282.00





TheEncodalizer™ - Modbus Version
Model MBE
Datasheet
Click Here to Visit the Encodalizer Documentation Center
Adds a "Sensus Protocol" or "Neptune Protocol" AMR/AMI Signal to Many Specialty Flow Meters.
Housed within A NEMA-4X Enclosure With 1/2" NPT Male Conduit Meter Connection Fitting and 1/4" Cable Gland AMR Cable Fitting.
See Datasheet For Meter Compatibility.
2 Year Warranty.
Quantity=1
Price: $646.00





Milliamp-to-Pulse Converter
Model MTP
Datasheet
Accepts a 4-20mA Input Signal, and Converts to an Open-Collector Pulse Output Signal, Suitable For Connection to a Totalizer.
Mounts on 35mm Din-Rail.
Made in China.
2 Year Warranty.
Quantity=1
Price: $450.00





Milliamp Signal Splitter
Model MTMM
Datasheet
Accepts a 4-20mA Input Signal, and Converts to two 4-20mA Output Signals.
Mounts on 35mm Din-Rail.
Made in China.
2 Year Warranty.
Quantity=1
Price: $450.00





DB9F-DB9F Null Modem Adapter
Model DB9-NULL
For Connecting Computer/PLC DB9M Port to EtherMeter DB9M Port.
Note! - Only for v283+ Model EtherMeters.
Quantity=1
Price: $8.25




RJ45 Female to DB9F Modular Adapter
Model EM-439
Converts the EtherMeter's EIA-561 Serial Port to DB9F.
Note! - Not Needed for v283+ Model EtherMeters.
Quantity=1
Price: $6.25




RJ45 Female to DB9M Modular Adapter
Model EM-438
Converts the EtherMeter's EIA-561 Serial Port to DB9M.
Note! - Not Needed for v283+ Model EtherMeters.
Quantity=1
Price: $6.25




RJ45 Female to DB25M Modular Adapter
Model EM-342
Converts the EtherMeter's EIA-561 Serial Port to DB25M.
Note! - Not Needed for v283+ Model EtherMeters.
Quantity=1
Price: $6.25




24VDC/20W Switching Power Supply
Model MDR-20-24
Meanwell AC/DC Switching Power Supply.
Datasheet
Click Here to Visit the MDR-20-24 Documentation Center
Input: 85~264Vac,120~370Vdc
Output: 24VDC, 20W
Din Rail Mountable
UL-508 Listed
Quantity=1
Price: $62.00




24VDC/40W Switching Power Supply
Model MDR-40-24
Meanwell AC/DC Switching Power Supply.
Datasheet
Click Here to Visit the MDR-40-24 Documentation Center
Input: 85~264Vac,120~370Vdc
Output: 24VDC, 40W
Din Rail Mountable
UL-508 Listed
Quantity=1
Price: $82.00

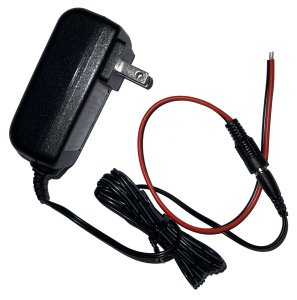

Wall Transformer-Style Power Supply - for APK.PLUS
Model R.1421
Reliapro Wall Adapter Transformer
Datasheet
Regulated Switching, 24VDC @ 1A, 2.1mm Barrel Adapter, UL-CUL-CEC-FCC
Input: 90~264Vac
Output: 24VDC, 24W, 1A
Wall-Receptacle Pluggable.
UL Listed
Cable Included.
Quantity=1
Price: $62.00

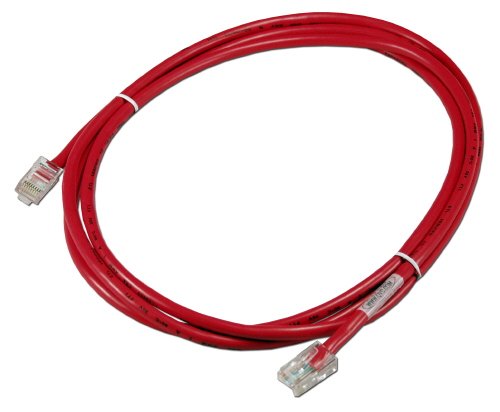

Ethernet Patch Cable CAT5E - 1 Ft. - With Boot
Model: PATCH-01
Quantity=1
Price: $2.50




USB to RS232 Serial Adapter.
Model: USA-19HS
Mfr: Tripp-Lite/Keyspan
Connect devices with a 9-pin serial port, such as an EtherMeter, PLC's, and RTU's to the USB Type-A port on your computer or laptop. A useful tool for modifying the EtherMeter's settings through EtherMeter's serial port. Windows and Mac Driver Software CD Included. The USA-19HS is broadly recommended by serial device manufacturers due to its dependability and "Best in Class" compatibility. Terminal Emulation Software, such as PuTTY or HyperTerminal Private Edition, is also recommended for use with this adapter, but not included.
Quantity=1
Price: $48.00




Ethernet Patch Cable CAT5E - 2 Ft. - With Boot
Model: PATCH-02
Quantity=1
Price: $3.50




Lexan Weatherproof Window Bezel Kit
Model: EBEZ-420
Outer Dimensions = 5.5 Inch x 3.5 Inch
Inner (Window) Dimensions = 3.0 Inch x 1.0 Inch
Thickness = 0.020 Inch, Adhesive = 3M 200MP, 0.005 Inch.
Quantity=1
Price: $19.90




EtherMeter Logo Pocket Screwdriver
Model: PSD-01
Pocket Screwdriver, Reversible Flat/Phillips Head, SCADAmetrics Logo.
Quantity=1
Price: $7.00




Smart Bell-202 Modem For Radio Telemetry (Din Rail Mount)
Model SB.202
Datasheet and Manual
Click Here to Visit the Smart Bell 202 Modem Documentation Center
Bell-202 AFSK modem for use with analog telemetry radios.
Breakthrough Design - Automatically handles radio push-to-talk timing, and data stream timing - Works even with a 3-wire RS-232 serial port! (port flow control *not* required!). 2.5KV Serial Port Isolation. Compatible with Schneider SCADAPack RTUs, Schneider 5902 Modems, and Rockwell PLCs. Mounts on 35mm Din-Rail.
2 Year Warranty.
Quantity=1
Price: $666.00




Telemetry Leased Line Adapter for Smart Bell-202 Modem (Din Rail Mount)
Model TL.202
Datasheet and Manual
Click Here to Visit the Smart Bell 202 Modem Documentation Center
Two-Wire Leased Line Adapter for SB.202 Bell-202 Modem.
Breakthrough Design - When used in conjunction with SB.202, automatically handles push-to-talk timing, and data stream timing - Works even with a 3-wire RS-232 serial port! (port flow control *not* required!). 2.5KV Serial Port Isolation. Compatible with Schneider SCADAPack RTUs, Schneider 5902 Modems, and Rockwell PLCs. Mounts on 35mm Din-Rail.
2 Year Warranty.
Quantity=1
Price: $625.00




Bell-202 OEM Modem For Radio Telemetry (Din Rail Mount)
Model B202.v109
Datasheet and Manual
Click Here to Visit the Bell 202 OEM Modem Documentation Center
Bell-202 AFSK modem for use with analog telemetry radios.
New/Improved: 2.5KV Serial Port Isolation. Internal Serial Port Pin Jumpering for Rockwell / Allen-Bradley DF1 Radio-Modem. High-Current Audio Output Compatible with 600 Ohm Loads.
Mounts on 35mm Din-Rail.
2 Year Warranty.
Quantity=1
Price: From $453.00




Legacy Bell-202 OEM Modem For Radio Telemetry (Din Rail Mount)
Model B202.v103
Datasheet and Manual
Click Here to Visit the Bell 202 OEM Modem Documentation Center
Bell-202 AFSK modem for use with analog telemetry radios.
Mounts on 35mm Din-Rail.
2 Year Warranty.
Quantity=1
Price: From $408.00




Antenna Mounting Bracket For Water Tower Painter Rings
Model PTM-90
Datasheet
For Mounting SCADA and Microwave Antennas onto Water Tower Painter Rings.
For Tubular-Style Painter Rings.
100% Stainless Steel.
3 Year Warranty.
Quantity=1
Price: $325.00




Antenna Mounting Bracket For Water Tower Painter Rings
Model PTM-91
Datasheet
For Mounting SCADA and Microwave Antennas onto Water Tower Painter Rings.
For Plate-Style Painter Rings.
100% Stainless Steel.
3 Year Warranty.
Quantity=1
Price: $325.00




FM Telemetry Radio (Din Rail Mount)
Model DTX_PLUS
Datasheet
Click Here to Visit the DTX PLUS Documentation Center
FM Telemetry Radio.
Mounts on 35mm Industrial Din-Rail.
VHF and UHF Models Support 12.5KHz Narrowband Frequencies.
Programming Software and Cable Available.
Integrates Seamlessly with SCADAmetrics' Bell 202 Modems.
1 Year Manufacturer's Warranty.
Quantity=1
Price: From $949.00




DTX Plus Terminal Block Adapter
Model DTX.ADAPT
Datasheet
Terminal Block Adapter for Ritron DTX+ Telemetry Radio.
Simplified Cabling Interface for Ritron DTX+ Telemetry Radio and Model SB.202 Modem.
Eliminates the Hassle of Building Custom DB15 Cables.
2 Year Warranty.
Quantity=1
Price: $22.00




DIN Rail Mounting Kit for Ritron DTX+ Telemetry Radio
Model DTX.DIN
Datasheet
Simplified Control Panel Mounting Kit for Ritron DTX+ Telemetry Radio.
Mounting Kit Permits Easy Installation of DTX+ Radio on Standard 35mm Din Rail.
2 Year Warranty.
Quantity=1
Price: $33.00
